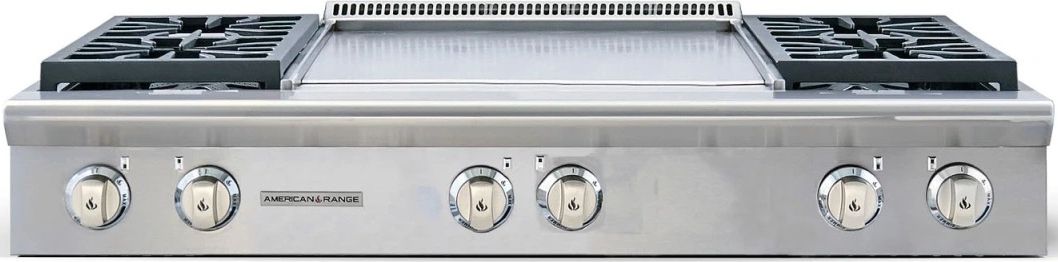

Product Dimensions 9.31"h x 47.88"w x 29.5"d
Inspired by their passion for perfection, renowned for their product innovation and quality, American Range is a recognized leader in the commercial food service industry. Their commercial workhorse pedigree has been proven in the world's most demanding kitchens.Read More
Free 1 Year ExtendedWarranty Included
3 sizes of burners to serve your everyday needs: 17,000 BTU (lg), 13,000 BTU (med), 9,000 BTU (sm).
Continuous and flush commercial-grade cast iron grates allow for easy transfer of pots and pans across the cooking surface.
Sealed burners deliver exceptional performance at every level setting and lift off to provide easy cleanup.
Sealed burners create simmer temperatures at minimum setting.
Variable infinite flame settings for all sealed top burners.
Fail-safe system ensures re-ignition in the event the flame goes out even on the lowest burner setting.
Sealed single piece tooled stainless steel cook top can hold more than a gallon of spills.
Analog controls provide easy, push and turn operation ensuring child safety.
Blue LED lights indicate flame and oven functions provided with every knob.
Heavy metal die-cast black satin knobs with chrome bezels.
General Specs | |
Color | Stainless Steel |
Fuel Type | Natural Gas |
Appliance Color | Stainless Steel |
Depth (in.) | 29.5 |
Grate Material | Cast Iron |
Height (in.) | 9.31 |
Width (in.) | 47.88 |
Appliance Fit Width (in.) | 48 |
Collection | Legend Series |
Color Finish Name | Stainless Steel |
Burner Type | Sealed |
Number of Elements/Burners | 5 |
Ignition Type | Automatic Electronic |
Cut Out Depth | 24.75 |
Cut Out Width | 48 |
Cut Out Height | 8 |
Voltage | 120 |
Frequency | 60 |
Amp | 15 |
Cooktop Features | Continuous Grate |
Cooktop Surface Style | Grate, Griddle |
Cooktop Surface | Stainless Steel |
